GAP-24000 Series Outdoor Wireless Access Point
Specifications
GAP-24001
GAP-24100
Frequency Channels
2400-2483.5MHz
Output Power
23dBm
30dBm
Lightning Protector Surge Current
20kA
Operating Temperature Range
-20 ~ 70 degrees Celsius
Humidity
Outdoor , all-weather enclosure
Interface
Ethernet 802.3 10 Base-T ( MIL-C-5015 style circular connector )
Dimensions
245mm ¡Ñ 200mm ¡Ñ 70mm
Weight
1.8kg
2.1kg
Power Supply
Active Ethernet ( power over Ethernet ) 12VDC / 0.7A
External Unit : Auto sensing 100 / 240VAC ; 50/60Hz
Package Contents
GAP-2400 Unit
Ethernet Inline Power Injector
Omni Antenna (Option)
25M Cat.5 Shielded Ethernet Cable
2M Uplink Cat.5 Ethernet Cable
User's Manual
Lighting Protector (Option)
Mast Mounting Bracket With U-bolts
Wall Mounting Bracket with screws
Option Accessories
50/75 Cat.5 Cable
12/8.5/6dBi GP Antenna

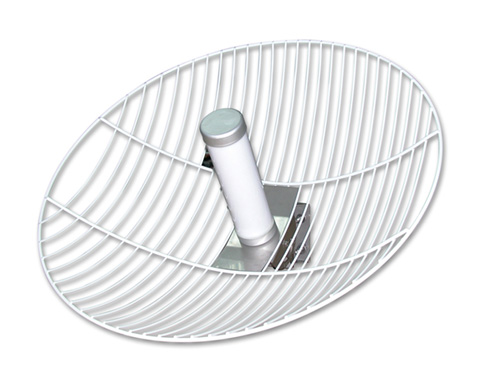

24dBi Grid Antenna
Lightning Protector
The distances referenced are approximations and should be used for estimation only.
10m ANT Height ( Clearance ) 11Mbps Distances Estimation
Model
GAP-2401
GAP-2410
Remote Ant.
12dBi
18dBi
20dBi
24dBi
Root Ant.
6dBi
2.5km
5.5km
7.1km
9.9km
8.5dBi
3.5km
6.9km
8.7km
9.8km
11dBi
5.0km
6.5km
9.0km
10.6km
11.5km
16.6km
12.8km
19.8km
22.2km
21.9km
25.5km
29.9km
Note : Distance over 16 Miles or 25 km are very difficult to align and install.
