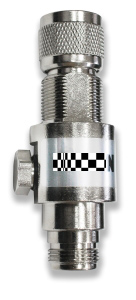

MODEL：GLL-24
Electrical
Specifications
|
Frequency Range |
0 ~ 3 GHz |
|

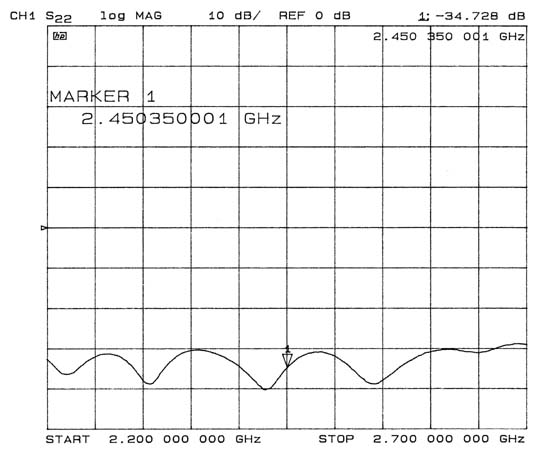

V. S. W. R. |
1：1.5
Max (0 ~ 3 GHz) |
|
Insertion Loss |
0.5 dBi Max (0 ~ 3 GHz) |
|

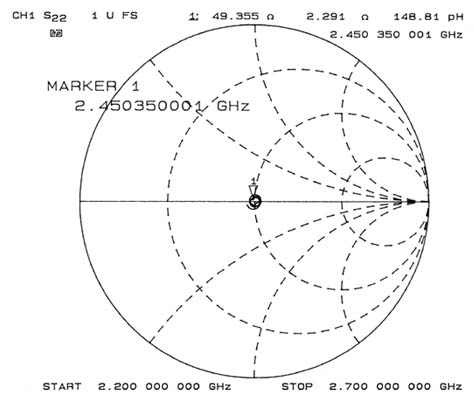

Impedance |
50 Ohm |
|
Gas Tube DC Breakdown Voltage |
90 V
±
20% |
|
Gas Tube Impulse Breakdown Voltage |
1000 V
±
20% |
|
Gas Tube Insulation Resistance |
10,000 MΩ |
|
Maximum Withstand Current |
5 KV |
|
RF Power Rating (CW) |
10 W Continuous |
Mechanical
Specifications
|
Connectors |
N-Male to Bulkhead N-Female |
|
Connector Body Material |
Nickel Plated Brass |
|
Body Material |
Nickel Plated Brass |
|
Pin Material |
Gold Plated Brass |
|
“O”-Ring Material |
Rubber |
|
Bracket Material |
Stainless Steel |
|
Dimensions (max) |
80㎜
×
26㎜
×
30㎜ |
|
