Output Power |
1
Watt Outdoor |
Operating Range |
2400-2500 MHz |
Operating Mode |
Bi- Directional TDD |
Transmit Gain |
up to 24dB |
Frequency Response |
±1dB |
Output Power |
1
Watt (+30dBm) |
TX Input Power |
0dBm Min/23dBm
Max |
Receiver Gain |
15-18dB, 17dB typical |
Noise Figure |
3.5dB typical |
Connectors |
N-Type,
50 Ohm |
Lightning Protection |
Quarter Wave Technology |
Power Consumption |
Tx:<1A/Rx:<160mA
@
9 VDC |

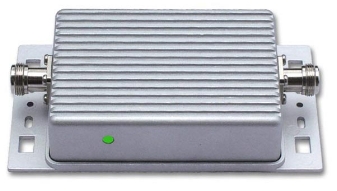

LED Indication |
Transmit:Green/Receive:Red |
AMP Dimensions |
142L × 79W × 31H (㎜) |
Operating Temperature |
-30℃
to +70℃ |
|
